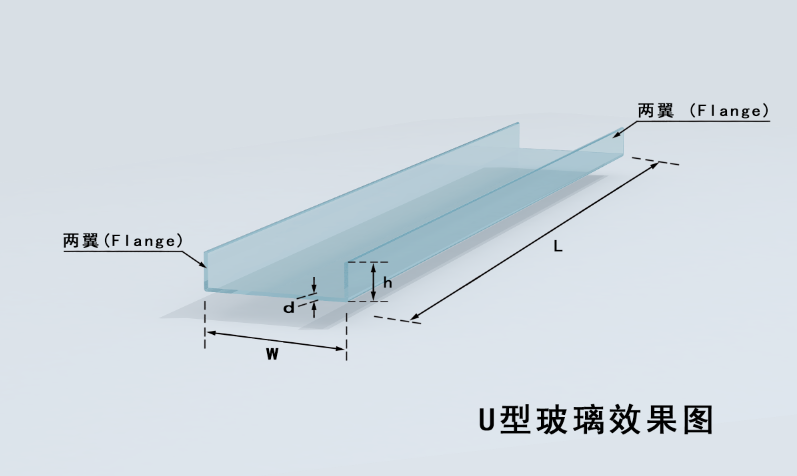

| Items | Specification ranges | ||||
| Thickness (d) | 7mm | 8mm | |||
| Width (w) |
220mm | 230mm | 260mm | 330mm | 500mm |
| Flanges height (h) |
41mm | 60mm | 90mm | ||
| Max Length (L) |
Annealed ≤ 9000 mm; T/P ≤ 8500mm | ||||
| Tolerance (mm) |
d: ± 0.1 mm h：± 1 mm w: ± 2 mm L: ± 3 mm (BS EN 572-7:2012) d: ±0.3mm h: ± 1.5 mm w: ± 2 mm L: ± 3 mm (JC/T 867-2025) |
||||
|
The maximum length does not equal the usable length of the final specification. The specific length shall be subject to the specification selected for the project and the calculation result of wind load |
|||||
|
In addition to the above alternative specifications, we offer personalized customization services, with the specific details subject to the project design |
|||||
 |
||
 |
 |
 |

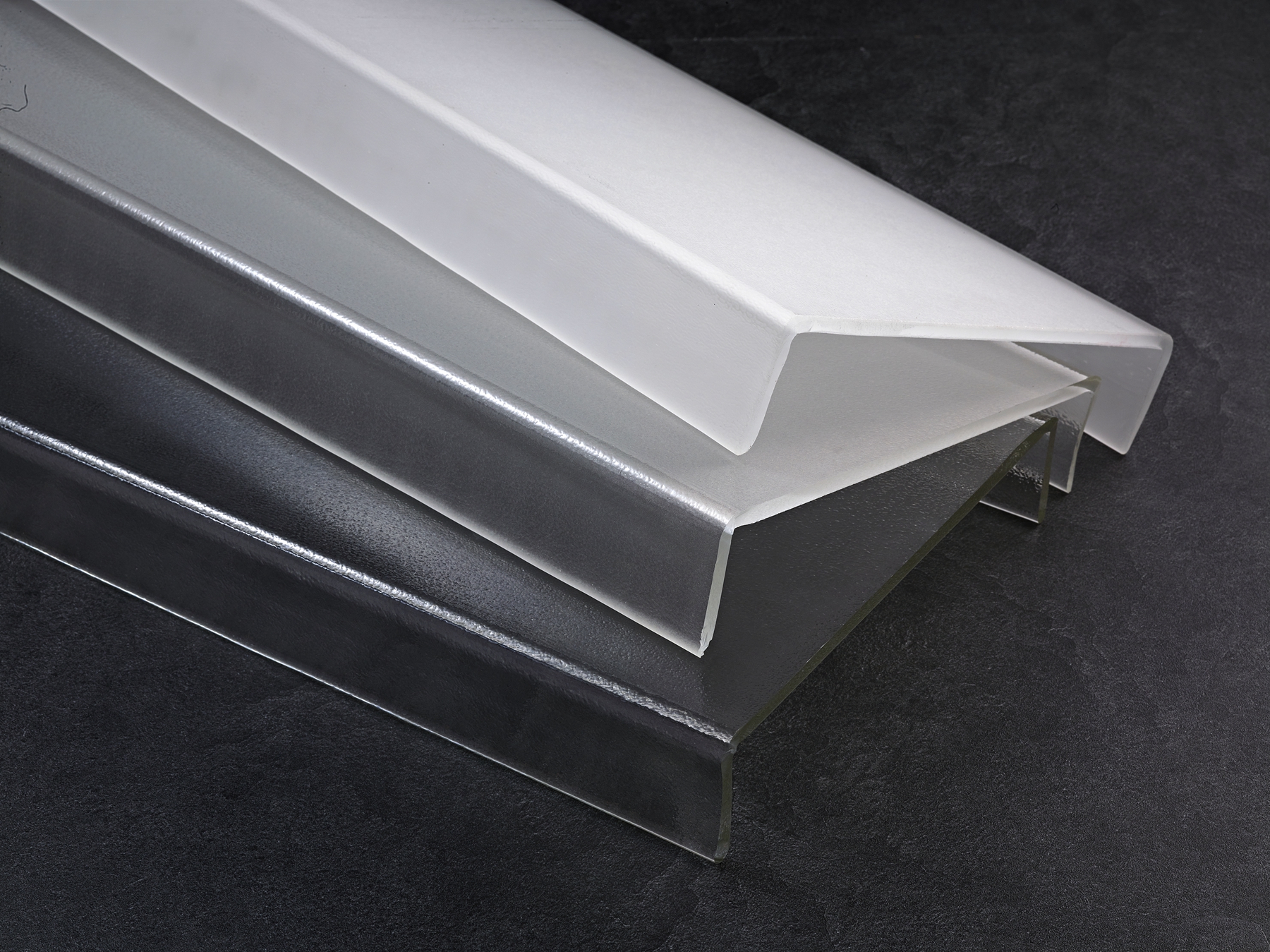

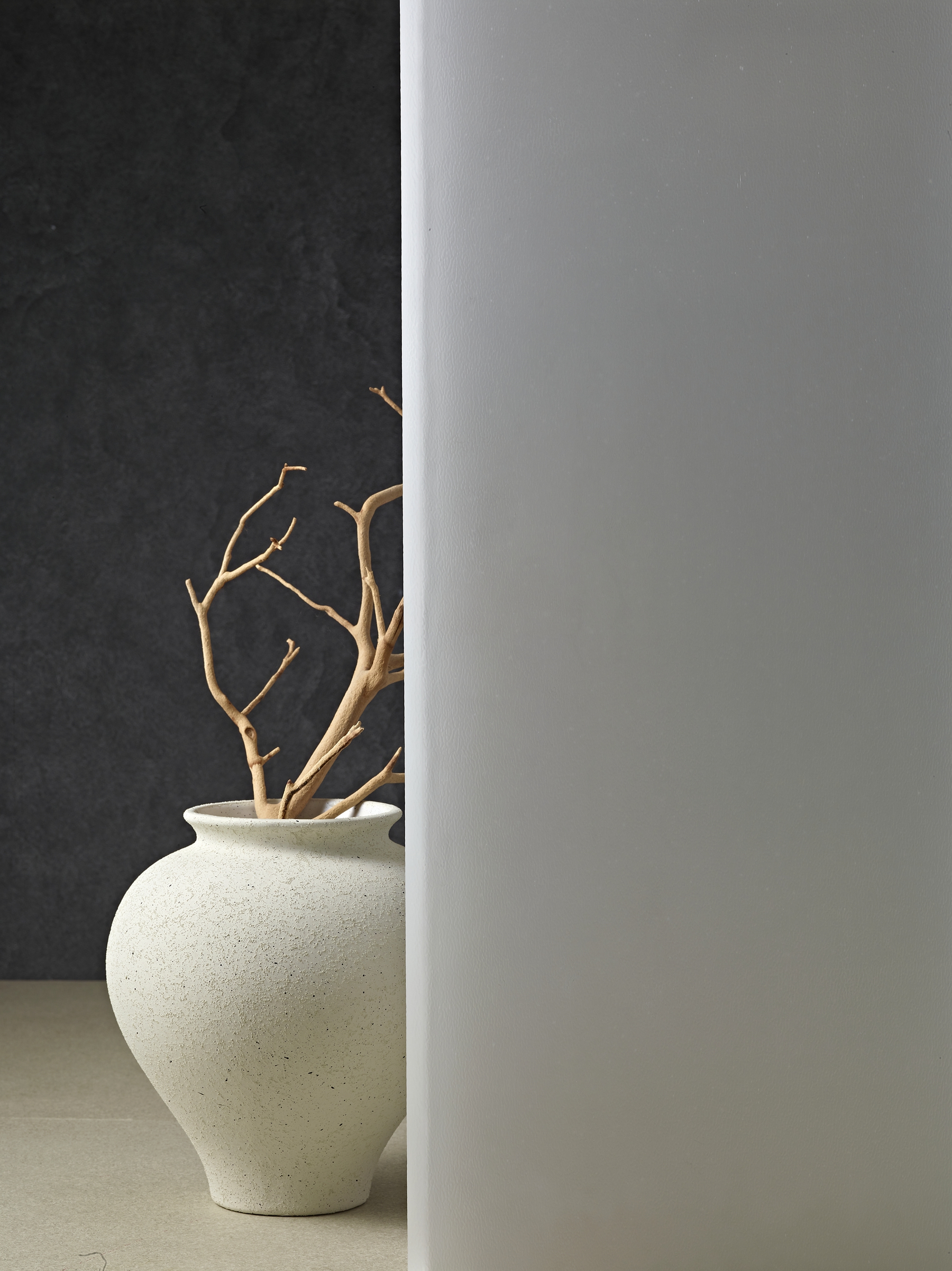

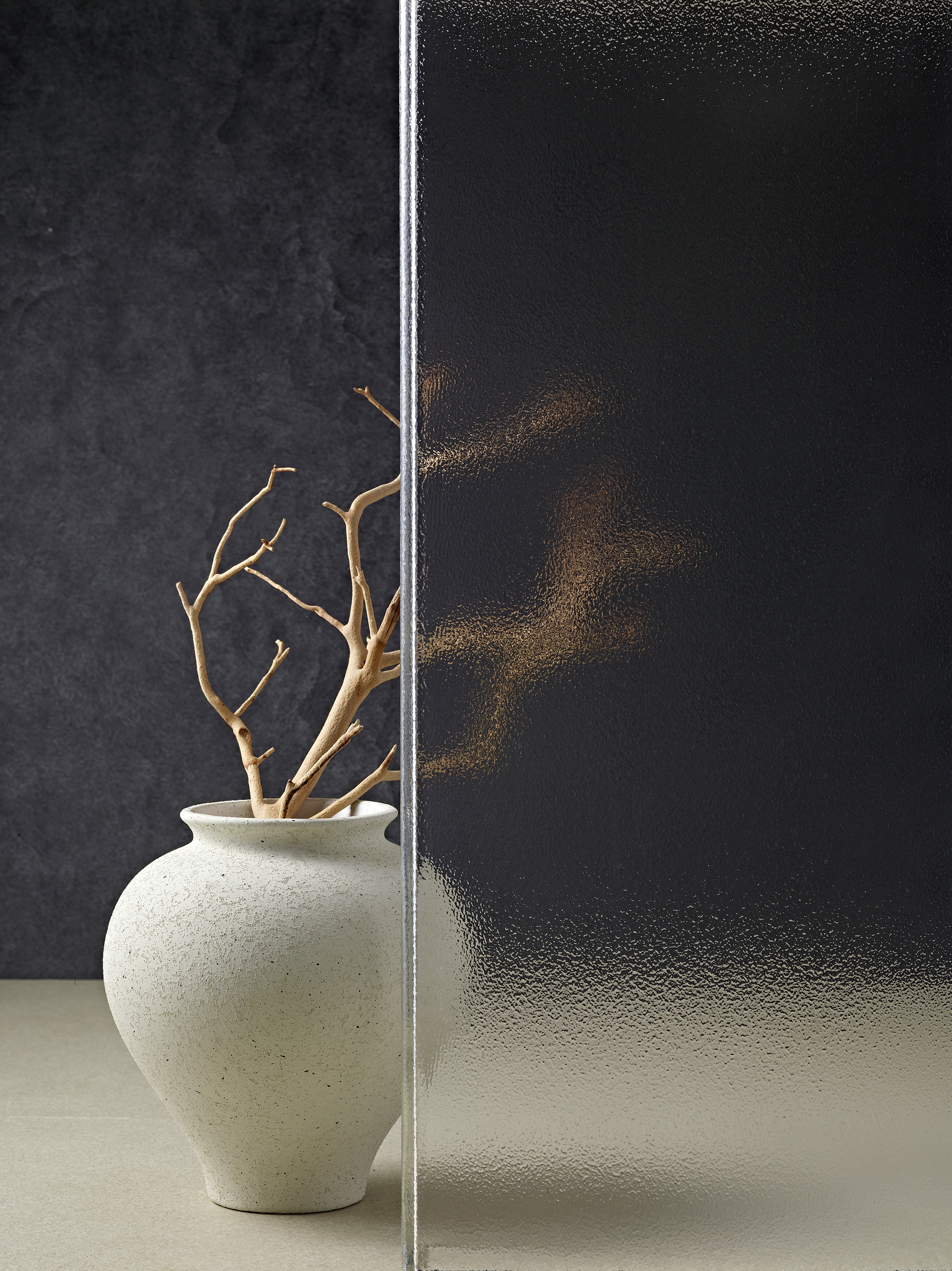

| Pear | Pear + Sandbalsted | Pear + Acid-etched |
 |
||
 |
 |
 |

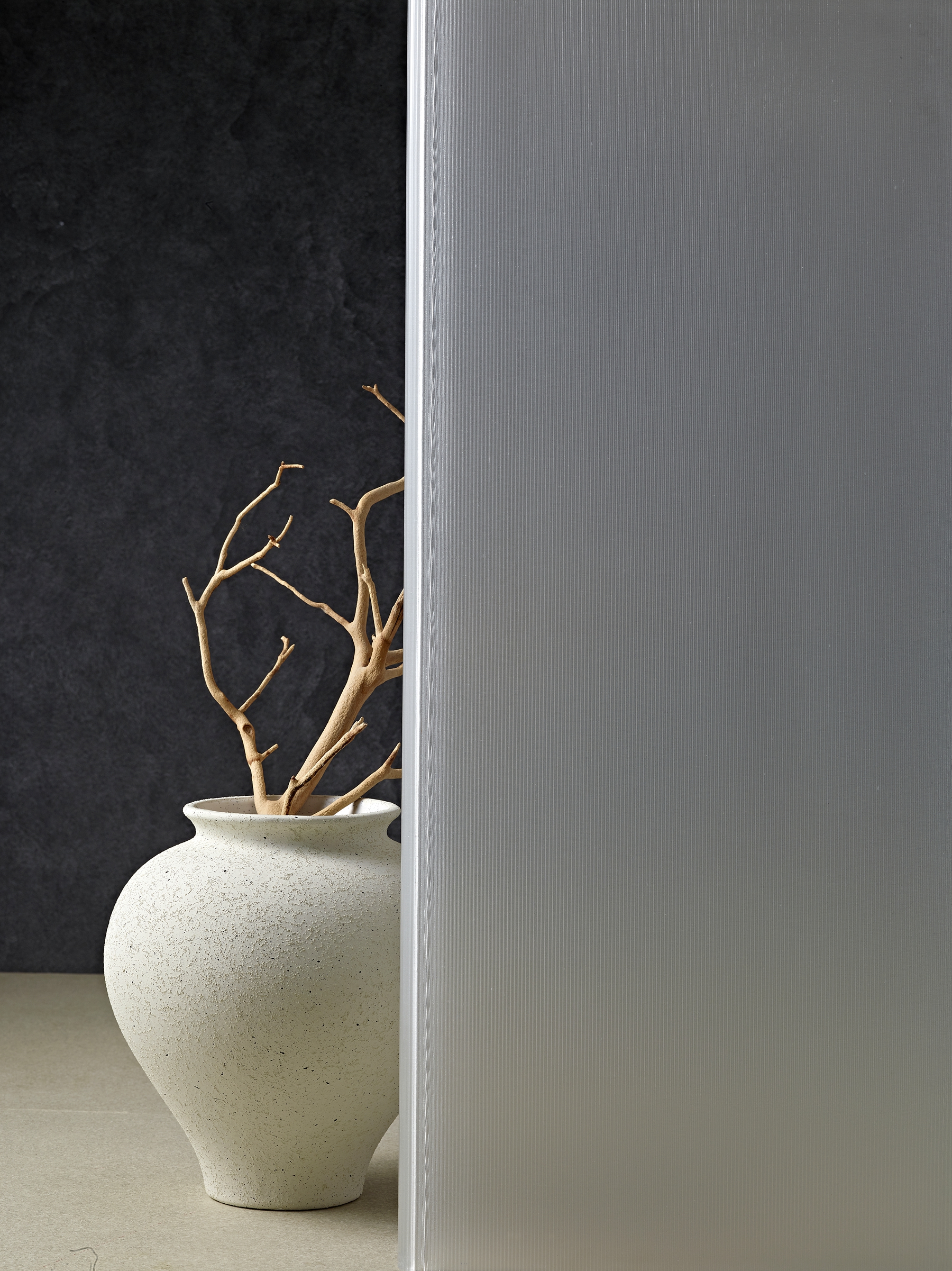

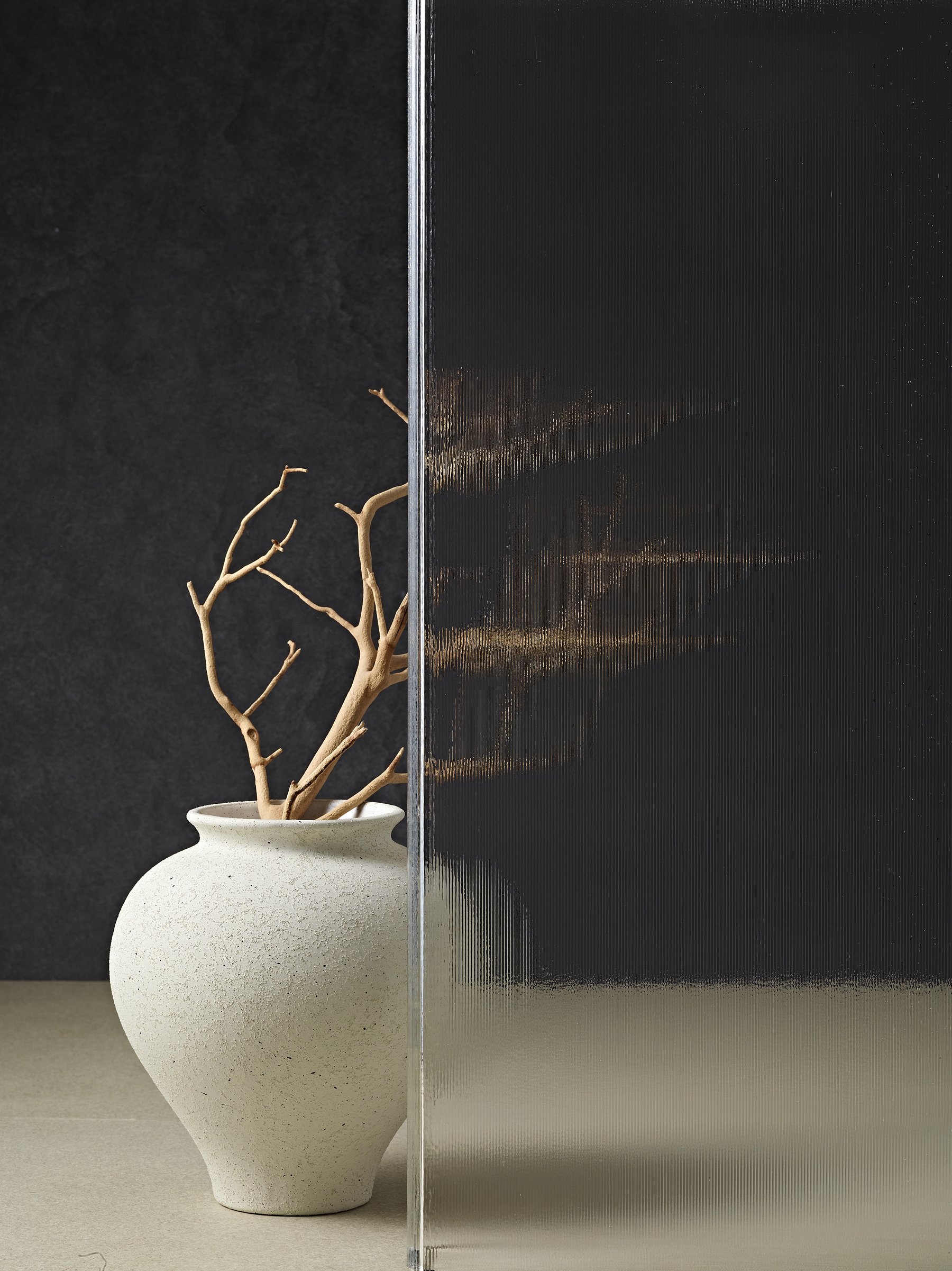

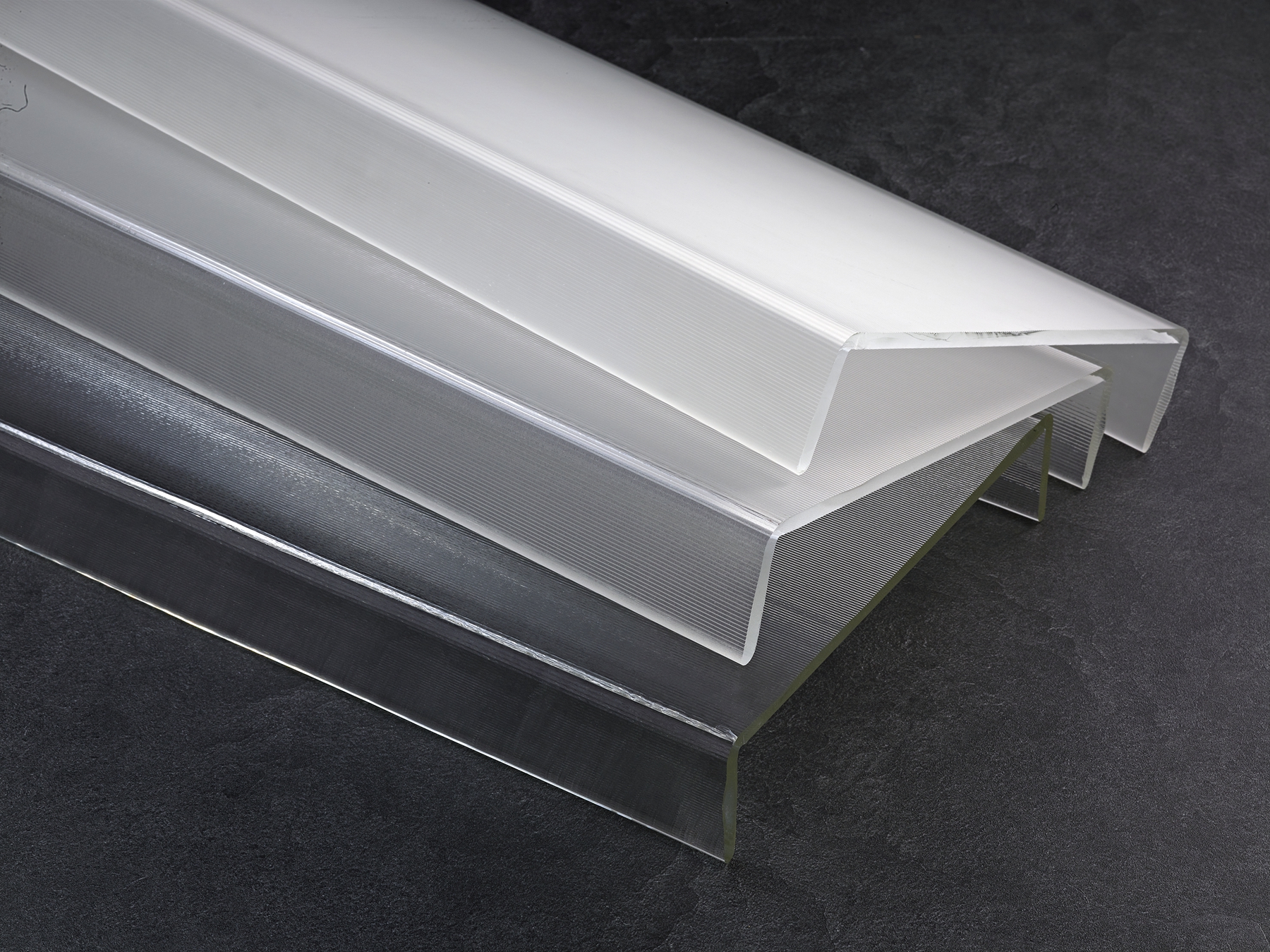

| Slim line | Slim line + Sandblasted | Slim line + Acid-etched |
 |
||
 |
 |
 |

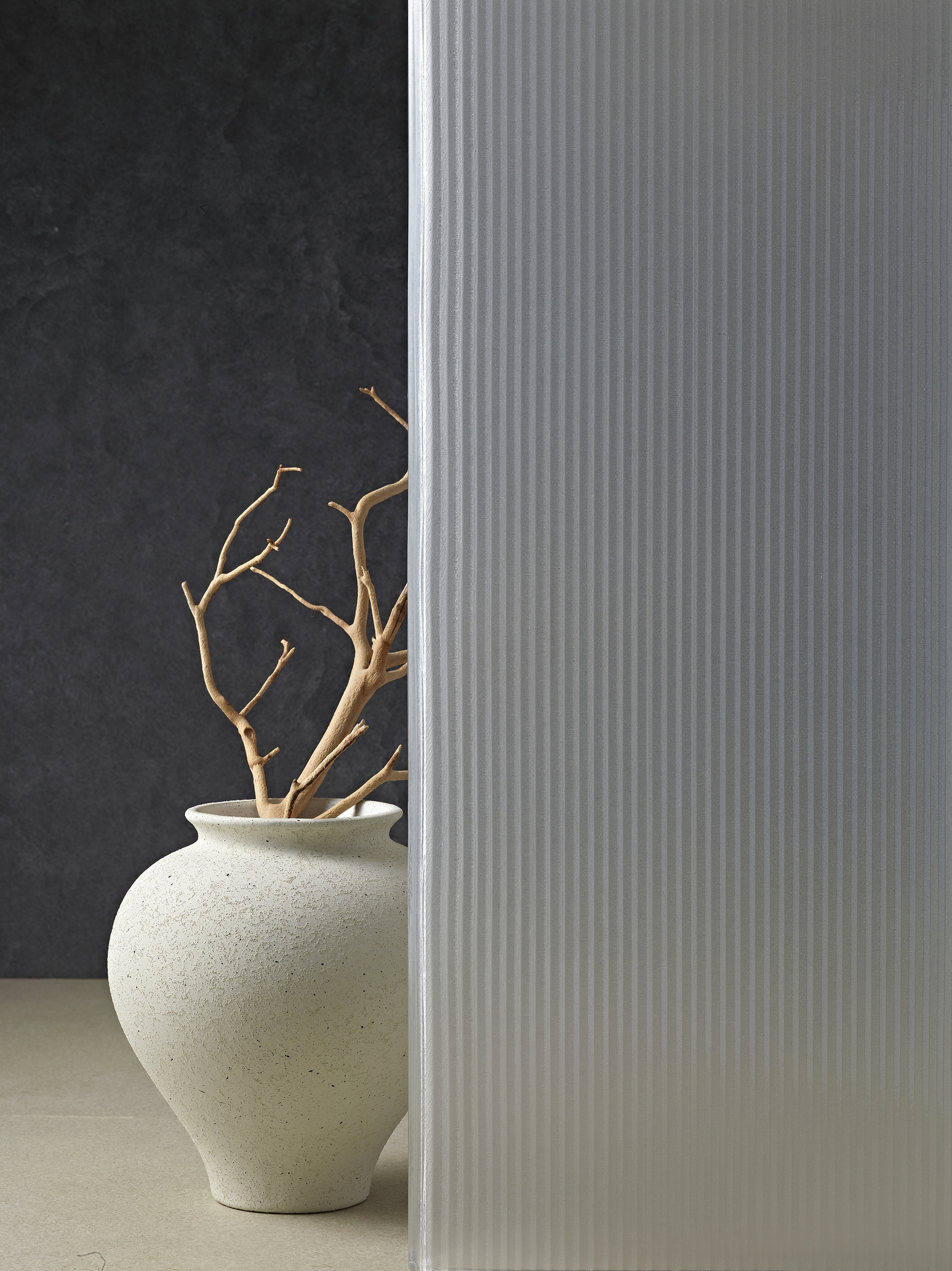

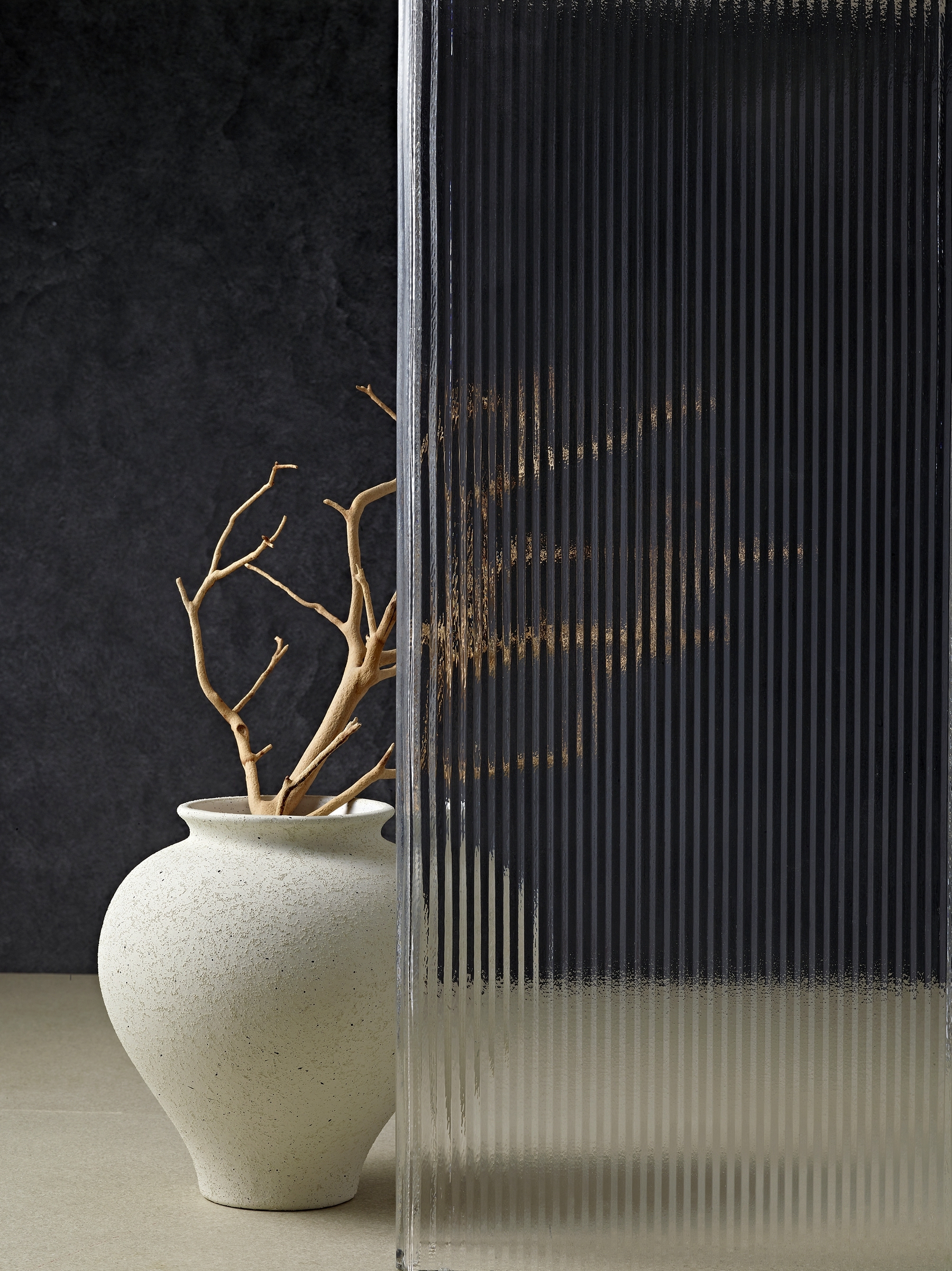

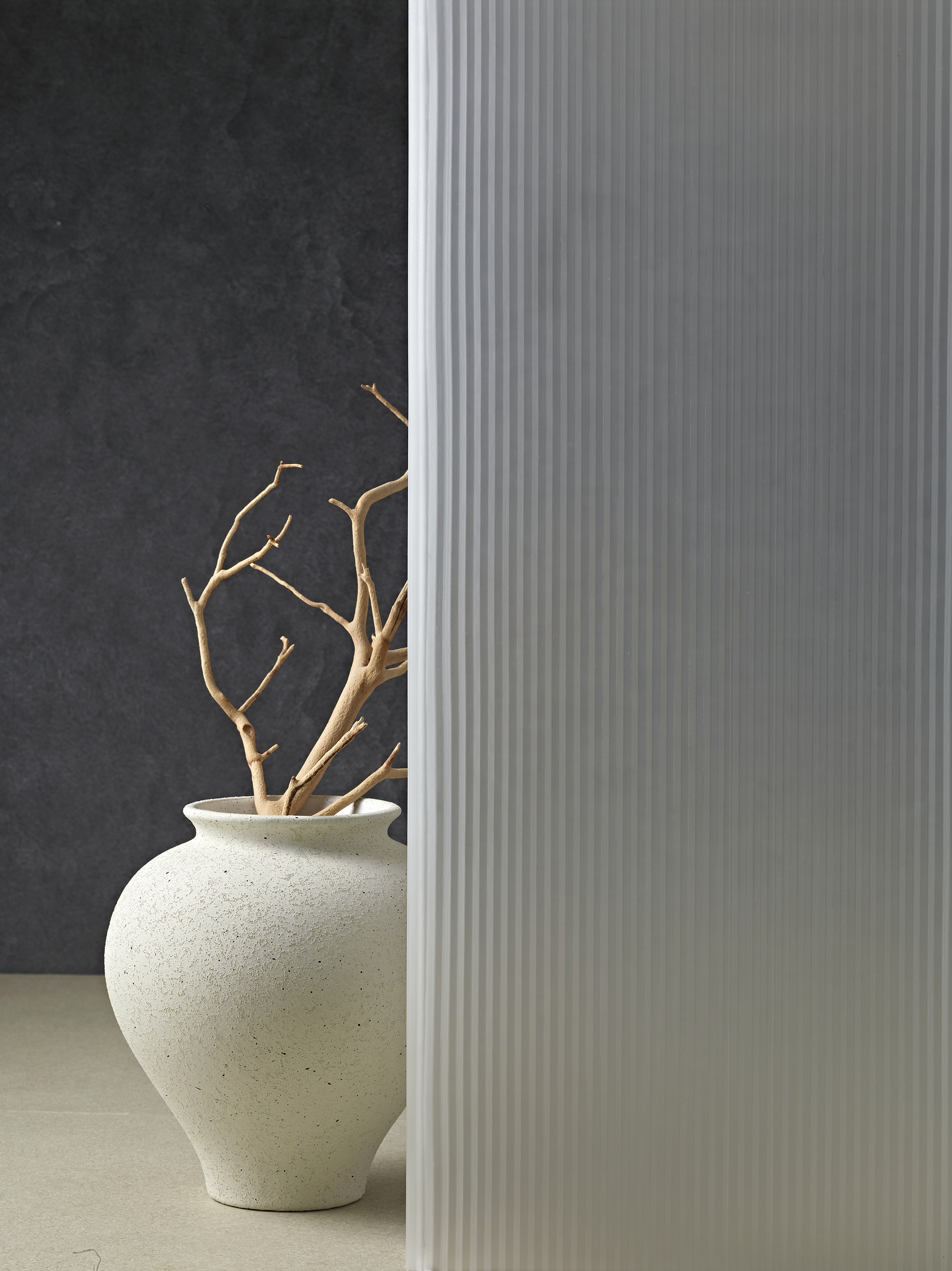

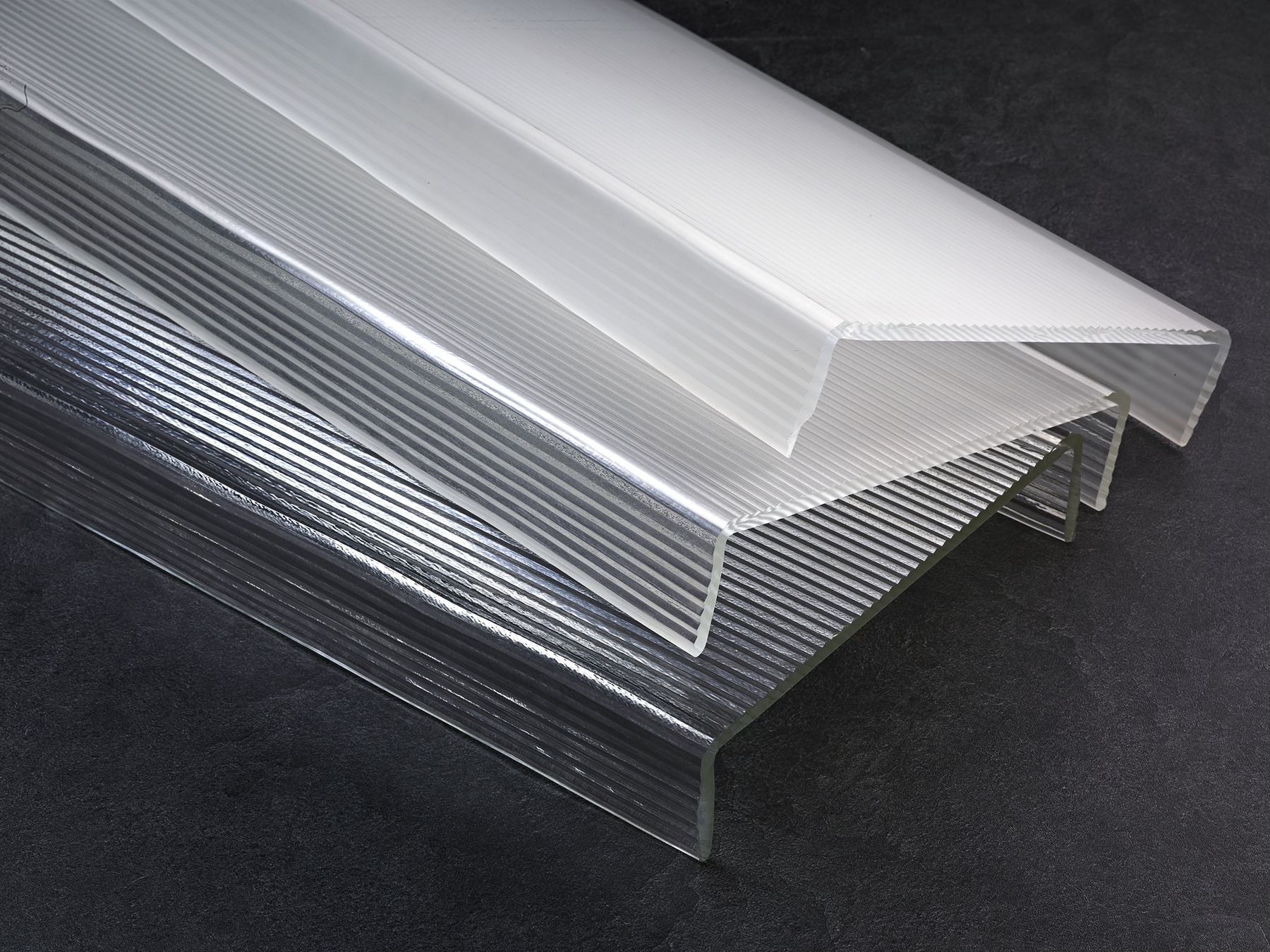

| Line | Line + Sandblasted | Line + Acid-etched |
 |
 |
 |

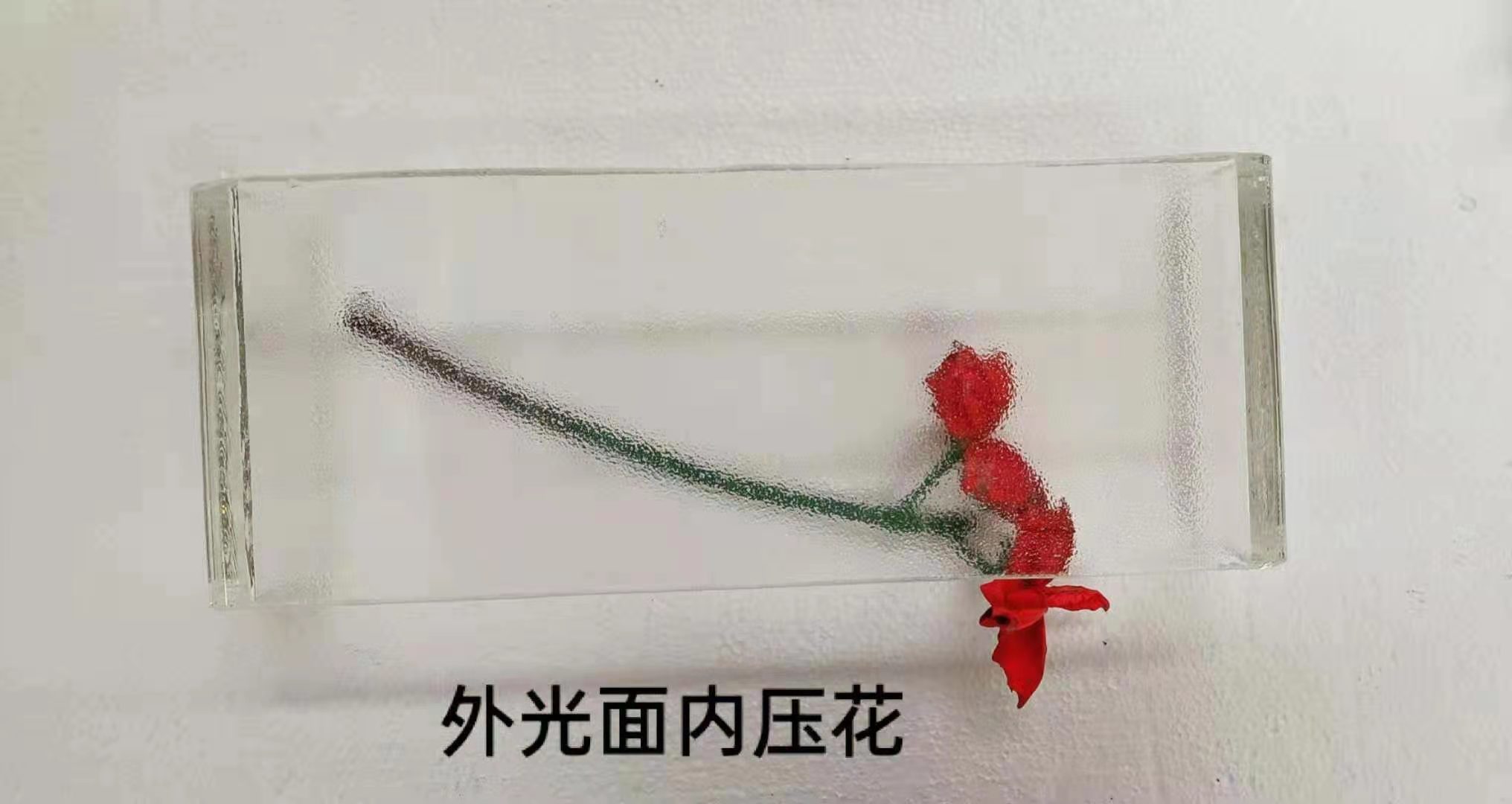

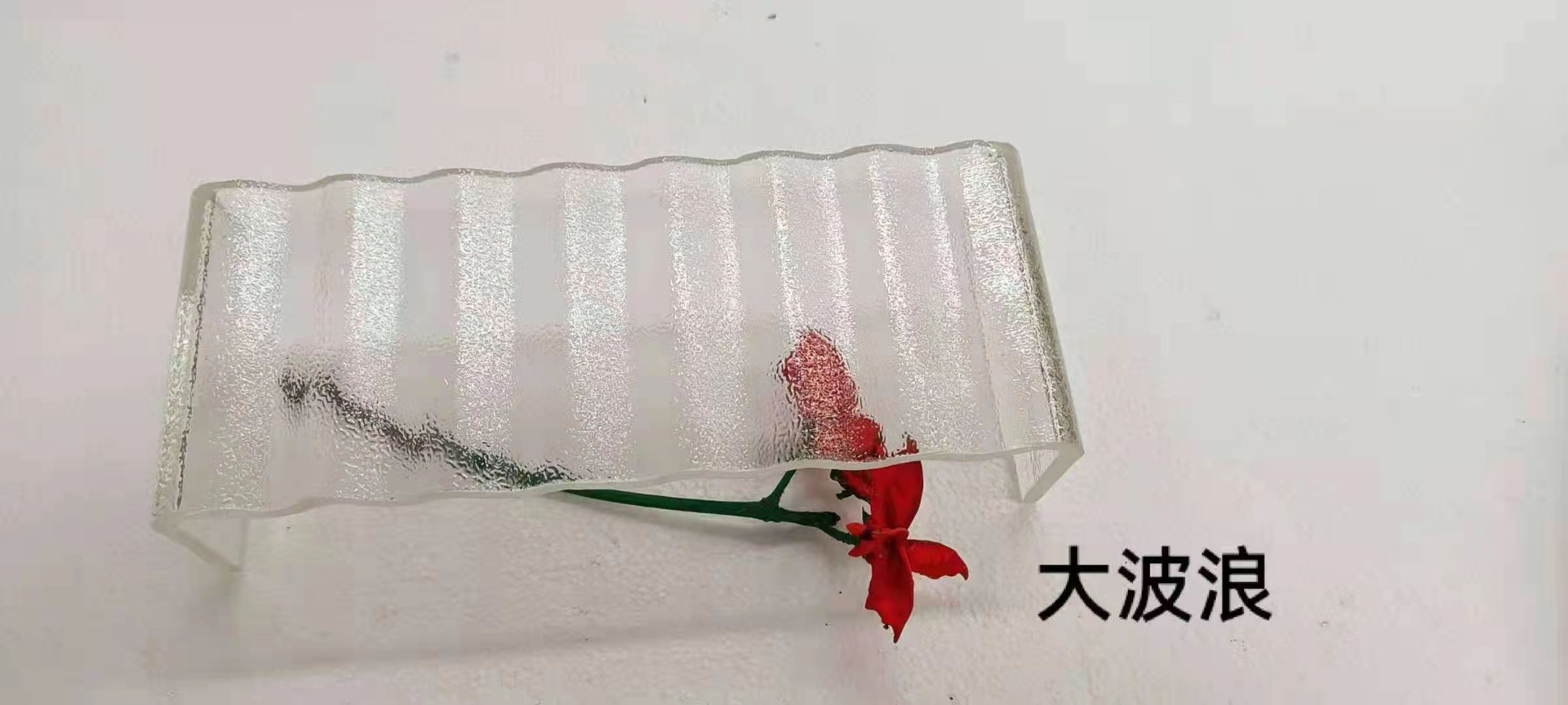

| Solar | Wave | Smooth outside+Pear inside |
