The Low-E coating layer has the characteristics of high transmission of visible light and high reflection of mid-and far-infrared rays. It can reduce the heat entering the room in summer and increase the insulation rate in winter to reduce heat loss, thereby reducing air-conditioning operating costs.
Daylighting: Diffuses light & minimizes glare, provide natural light without the loss of privacy
Great Spans: Glass walls of limitless distances horizontally & heights up to eight meters
Elegance: Glass-to-glass corners & serpentine curves provide soft, even light distribution
Versatility: From facades to interior partitions to lighting
Thermal Performance: U-Value range = 0.49 to 0.19 (minimal heat transfer)
Acoustic Performance: reaches a sound reduction rating of STC 43 (better than 4.5″ batt-insulated stud wall)
Seamless: No vertical metal supports required
Lightweight: 7mm or 8mm thick channel glass is easy to design with and handle
Bird-Friendly: Tested, ABC threat factor 25

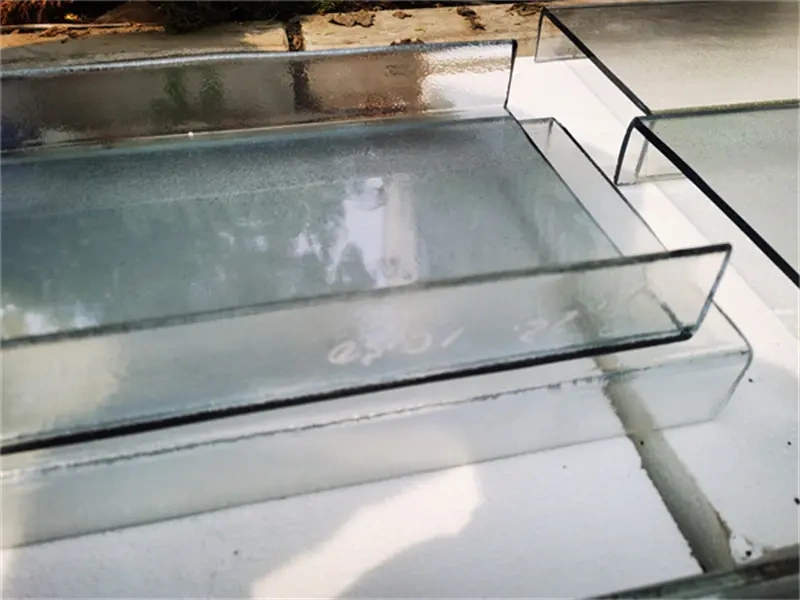

The specification of U glass is measured by its width, flange (flange) height, glass thickness, and design length.
| Tolerance (mm) | |
| b | ±2 |
| d | ±0.2 |
| h | ±1 |
| Cutting length | ±3 |
| Flange perpendicularity tolerance | <1 |
| Standard: Acording to EN 527-7 | |
varies with its width and thickness. The maximum length that can be produced for U glass of various standard sizes is like follow sheet shows:
The channel glass system provides a depth and profile not found in conventional glass wall applications; provides architects and design professionals with a translucent linear structural glazing system meeting or exceeding the project design criteria for function, light, and aesthetics and provides excellent structural capacity without vertical aluminum framing members. Blue and brown color or wired uglass as well as tempered U-profile glass can be supplied on request.
Interior walls, exterior walls, partitions, roofs and windows etc.
Standard export package: Plywood or wooden crate Corner protector and protective film is available Crates shall be banded by steel bands
1. Top quality glass with ISO9000, CE, AS/NZS 2208, ANSI Z97.1, SGS certificate.
2. Over 20 years experiences on glass manufacturing and exporting.
3. Export to more 60 countries in the world.
4. 100% quality checking before shipment.
5. Unique designed strong wooden cases, solving the problems of breakage.
6. Near to SHENZHEN of China main container seaports, ensuring convenient loading and rapid delivery.
7. Full range of flat glass supply, offering one-stop purchase.
8. Professional sales team, offering personalized and dedicated services
